Nothing ruins a new truck purchase faster than finding out it sticks three feet out of your garage once you finally get it home. I have seen plenty of owners forced to choose between leaving their expensive gear in the driveway or hacking up their workbench just to clear the bumper. Getting the exact dimensions of your specific cab and bed configuration is the only way to avoid that headache before you sign the paperwork.
Toyota Tacoma overall length ranges from 209 inches for short-bed models up to 226 inches for long-bed configurations. Recent 2024 models generally sit between 215 and 227 inches depending on the specific bed length and trim package chosen for your daily work or lifestyle needs.

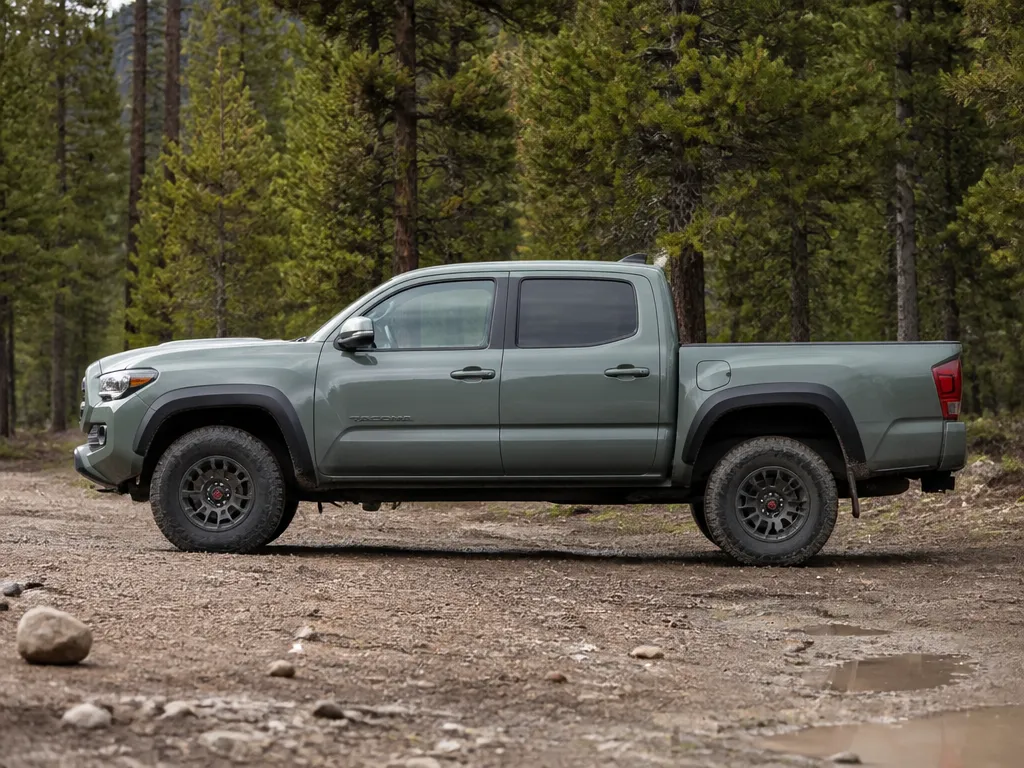

How Long Is A Toyota Tacoma By Generation?
The Toyota Tacoma length ranges from approximately 209 to 227 inches depending on the generation, cab configuration, and bed size. The 2024 redesign shifts these metrics slightly compared to the 2016-2023 models to accommodate a new chassis.
Fourth Generation (2024+) Dimensions
The fourth generation uses the TNGA-F platform, which increases the overall footprint of the truck. This change provides more room for the hybrid i-FORCE MAX powertrain and updated safety structures. Most configurations are slightly longer than their predecessors.
For instance, a Double Cab with a short bed typically measures around 215 inches. Owners with long beds will see lengths that exceed 225 inches. This extra length can make tight parking garages a challenge.
Third Generation (2016-2023) Dimensions
The third generation stayed consistent in size for nearly a decade. These trucks are generally more compact than the 2024 models. This makes them a preferred choice for people with limited driveway space.
A Double Cab with a 5-foot bed measures roughly 209 to 212 inches. The long bed version adds about 13 inches to that total. Access Cab models fall in the middle depending on the bed choice. Most owners find the short bed version fits in a standard 20-foot garage with a few inches to spare.
| Generation | Short Bed (Approx.) | Long Bed (Approx.) |
|---|---|---|
| 3rd Gen (2016-2023) | 209 – 212 inches | 222 – 225 inches |
| 4th Gen (2024+) | 215+ inches | 225+ inches |
Pro Tip: Always measure your garage from the back wall to the driveway apron to ensure the truck clears the door.
Tacoma Cab And Bed Configurations Compared
The total length of a Toyota Tacoma shifts significantly based on the combination of cab style and bed length. A longer bed adds approximately 13 inches to the vehicle footprint regardless of the cab choice.
Cab Style Impacts On Footprint
The Access Cab provides a smaller cabin with two rear-hinged doors, which allows for a shorter overall wheelbase compared to the four-door Double Cab. When you choose the Double Cab, the extended interior space pushes the rear axle back or lengthens the frame to maintain proper weight distribution. This creates a larger turning radius and requires more room in your garage.
For example, a Double Cab with a 6-foot bed results in the longest standard chassis configuration for the Tacoma. This setup requires significant clearance for parking and maneuvering compared to the more compact Access Cab paired with a 5-foot bed.
Bed Length Differences
Bed length dictates the rear overhang and total body length of the truck. The short bed, typically 5 feet, prioritizes maneuverability and trail capability by keeping the departure angle tight. The long bed, measuring 6 feet, extends the rear section of the frame and body panels to maximize utility for hauling.
Mechanic Tip: If you need a truck for daily commuting and tight urban parking, the Access Cab with a 5-foot bed is the easiest to manage. If you plan to haul materials or camper shells, the 6-foot bed is superior, but always measure your garage depth from the back wall to the door track before choosing this model.

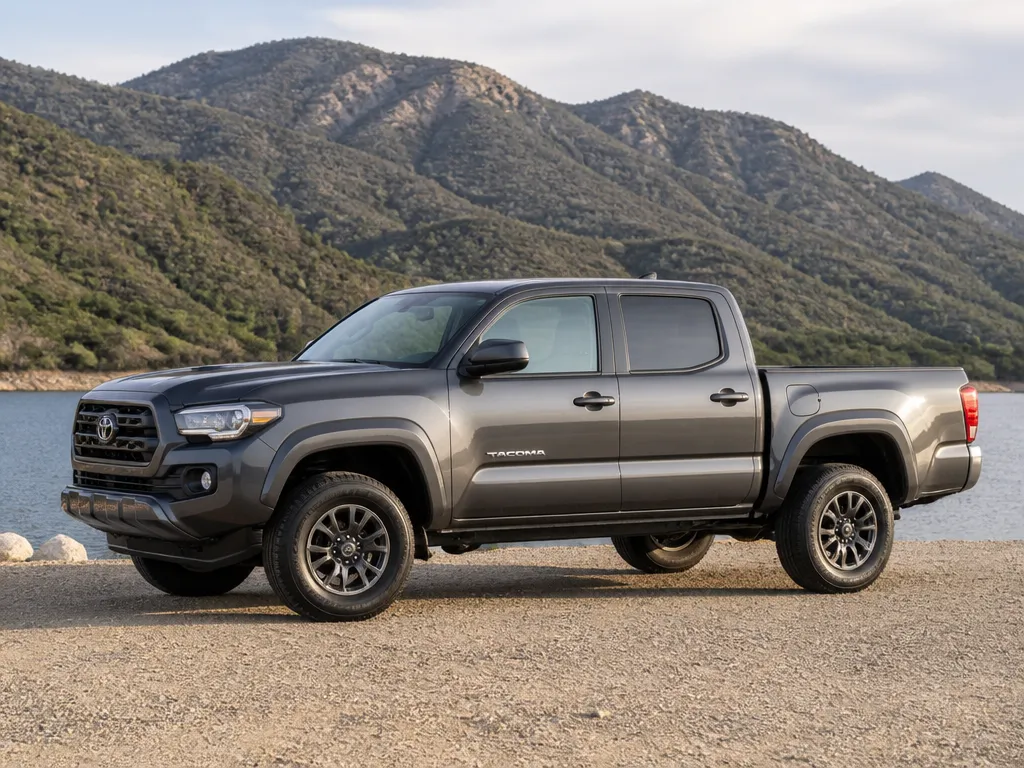

Toyota Tacoma Dimensional Specification Table
Recent Toyota Tacoma models vary significantly in total exterior length based on the specific cab and bed configuration selected. Standard measurements for these trucks generally fall between 212 inches and 226 inches, depending on whether the truck features a short or long bed.
Configuration Length Breakdown
Dimensions rely on the combination of the wheelbase and the rear overhang of the cargo bed. Access Cab models typically pair with a 6-foot bed, while Double Cab models offer a choice between a 5-foot or 6-foot bed.
| Configuration | Approximate Length | Wheelbase |
|---|---|---|
| Access Cab, 6ft Bed | 212.3 inches | 127.4 inches |
| Double Cab, 5ft Bed | 212.3 inches | 127.4 inches |
| Double Cab, 6ft Bed | 225.5 inches | 140.6 inches |
Variations in bumper design and trim level can add minor fractions of an inch to these base figures. Off-road oriented trims often include different bumper profiles that extend the total length slightly compared to base utility configurations.
Mechanic’s Note: Always measure your specific vehicle from the furthest point of the front bumper to the rear of the tailgate. Aftermarket accessories, such as heavy-duty steel bumpers or trailer hitches, frequently add 3 to 6 inches beyond these factory specifications.
Measurement Impacts
Wheelbase length dictates the turning radius and the break-over angle of the vehicle. Longer configurations, such as the Double Cab with the 6-foot bed, require more room for tight turns and exhibit a higher risk of grounding out on steep crests. Owners who prioritize garage storage should confirm the exact clearance of the rear bumper when the tailgate is closed, as even a one-inch difference can determine if the garage door clears the truck.
Garage Fitment Checklist For Tacoma Owners
Residential garage clearance requires measuring from the deepest part of the interior wall to the inside face of the closed garage door. Most standard residential garages measure between 20 and 22 feet in depth, which leaves very little margin for error when parking a long-bed configuration.
Accounting For Exterior Protrusions
Bumper overhang often adds several inches to the total footprint that many owners overlook when pulling in. Aftermarket steel bumpers or brush guards can extend the front profile by 4 to 6 inches beyond the factory specification. Always account for these additions before assuming the truck will clear the door mechanism.
Pro Tip: Place a tennis ball on a string hanging from the ceiling or install a laser parking assist guide. This ensures you stop at the exact same point every time, preventing accidental contact with the drywall or the door itself.
Mirror Width And Entry Clearance
Total vehicle width with mirrors extended often exceeds 80 inches on modern generations. Most standard single-car garage door openings are 8 to 9 feet wide, which provides enough room for the mirrors, but leaves little margin for error during entry.
| Component | Constraint Factor |
|---|---|
| Mirror Width | Requires 80+ inches of horizontal door clearance |
| Entry Angle | Narrow driveways increase the risk of mirror collision |
| Fold-in Capability | Manual folding mirrors save roughly 4 to 6 inches per side |
Narrow entry points frequently force owners to fold their side mirrors manually before entering the garage. If your driveway is angled, you must account for the wider turning radius required to keep the truck square with the opening. A misaligned entry can cause the rear tires to clip the door frame even if the truck fits perfectly once inside.

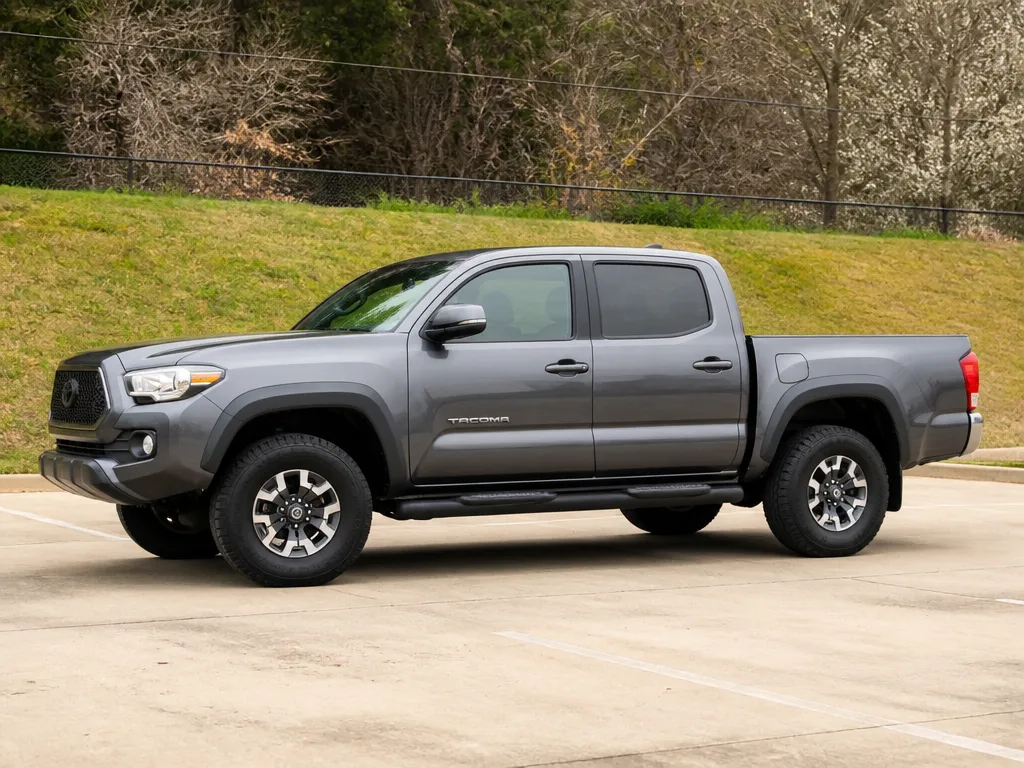

Why Does Total Length Fluctuate Between Trims?
External dimensions change primarily due to the specific configuration of bumpers, brush guards, and hitch assemblies paired with a trim level. These factory-installed components alter the vehicle footprint beyond the standard chassis measurements.
Impact Of Off-road Bumper Designs
Off-road trims like the TRD Pro or Trailhunter often arrive with high-clearance steel bumpers or aggressive valance designs. These units frequently extend further from the frame rails than the standard plastic covers found on SR or SR5 models to improve approach angles. Engineers design these pieces to protect the radiator and cooling stack during steep climbs, which adds measurable inches to the front profile.
Mechanic Tip: Always measure from the furthest protruding point of the front bumper to the rear bumper, including any installed trailer hitch, rather than relying on the wheelbase specifications provided in the owner manual.
Factory Accessory Extensions
Factory-added accessories create significant variances in total bumper-to-bumper distance. Many buyers opt for heavy-duty tow packages or dealer-installed brush guards that physically extend the truck body.
| Component Type | Estimated Added Length |
|---|---|
| Standard Plastic Bumper | 0 inches (Baseline) |
| Steel Off-Road Bumper | 1 to 3 inches |
| Factory Tow Hitch Receiver | 2 to 4 inches |
| Front Brush Guard | 3 to 6 inches |
In practice, a truck equipped with both a steel front bumper and a rear hitch can be nearly 8 inches longer than the base model of the same cab and bed configuration. These additions shift the center of gravity and alter the parking requirements for standard residential garages.
Quick Summary
Toyota Tacoma dimensions vary significantly based on the generation and cab configuration, creating a range from 209 to 227 inches in total length. The third generation models produced between 2016 and 2023 are generally more compact, with short bed variants measuring around 209 to 212 inches. In contrast, the 2024 redesign introduces the TNGA-F platform, which adds roughly one inch of length to the truck to accommodate new safety structures and the i-FORCE MAX powertrain. Understanding these variations is essential for ensuring your new truck will fit inside a standard residential garage.
Bed length is a primary factor in total footprint, as opting for a 6-foot bed adds approximately 13 inches to the vehicle length compared to a 5-foot bed. When planning for parking, you must measure your garage depth from the back wall to the door track and add at least 6 inches of clearance to avoid damage. While Access Cab models offer better maneuverability for tight urban spaces, Double Cab configurations provide more interior room at the cost of a larger turning radius. Always verify the specific configuration length to confirm it fits your storage space.
| Generation | Short Bed Length | Long Bed Length |
|---|---|---|
| 3rd Gen (2016-2023) | 209 – 212 inches | 222 – 225 inches |
| 4th Gen (2024+) | 215+ inches | 225+ inches |
Frequently Asked Questions
Will A Toyota Tacoma Fit In A Standard Residential Garage?
Most modern Tacoma models range from 212 to 226 inches in length, so you should measure your garage depth before buying. A standard residential garage is typically 20 to 22 feet deep, meaning a long bed Tacoma may be a very tight squeeze or might not fit at all.
Does The Length Of A Tacoma Change Based On The Cab And Bed Configuration?
Yes, the overall length varies significantly depending on whether you choose the Access Cab or Double Cab paired with either a 5-foot or 6-foot bed. The Double Cab with a 6-foot bed is the longest configuration, often reaching roughly 226 inches total.
How Much Extra Space Do I Need For A Tacoma Compared To A Compact Sedan?
You should plan for at least 3 to 4 feet of additional length compared to a typical compact sedan, which usually measures around 180 inches. Always account for extra room in your driveway or parking space so you can walk around the tailgate comfortably.
Is The Tacoma Longer Than Other Midsize Trucks Like The Ford Ranger Or Chevy Colorado?
The Tacoma is generally comparable to its competitors in the midsize segment, with most models falling within a few inches of the 212 to 226 inch range. Variations between these trucks are usually minimal, so parking one in a tight spot will feel similar to parking the others.
Does The Length Of The Truck Affect My Ability To Park In City Parking Garages?
Yes, the length can make navigating older parking structures difficult because many city garages have tight turning radii and short stalls. You will find that a Double Cab long bed model is more challenging to maneuver in cramped urban parking compared to the shorter Access Cab versions.
